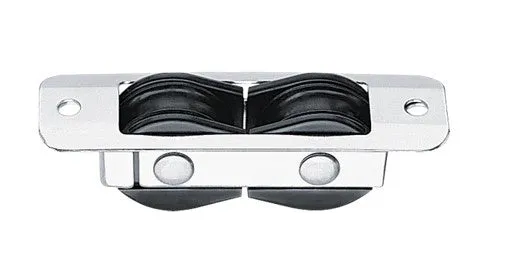

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications.
SPECIFICATIONS
- Breaking load (kg) 907
- Cutout (mm) 19 x 67
- Fasteners (mm) 5 RH
- Length (mm) 95
- Maximum line Ø (mm) 8
- Maximum working load (kg) 181
- Mounting hole spacing (mm) 79
- Sheave Ø (mm) 29
- Weight (g) 60
